The Hidden Gap Problem: Why Every Double Door Needs a T-Astragal
Double doors have a weak point built into the design: the seam where the two leaves meet.
That gap looks small. It isn't small in what it costs you.
Without a proper door astragal, that center seam lets in drafts, rain, light, and noise - and on exterior doors, it's a real security gap. Pry bars and forced-entry attempts target exactly this seam because a standard latch alone isn't enough to hold two independent leaves together under pressure.
If you have French doors, double entry doors, or any paired-door opening, the astragal is the piece of door hardware doing the quiet, unglamorous work of holding the whole system together. Here's what it actually does, why generic astragal strips fail, and how to choose a heavy-duty T-astragal that won't need replacing in two years.
Why the Meeting Stile Gap Fails (And What It Costs You)
Every double-door system has an "active" leaf (the one you open normally) and an "inactive" leaf (the one that stays latched in place). Where they meet is called the meeting stile - and it's the least protected part of the entire opening.
The core issue: two independent doors, one shared seam, no built-in seal.
A door frame seals against its jamb on three sides. But at the center, where two doors meet each other instead of a frame, there's nothing holding that line tight unless an astragal is doing the job.
Common installation mistakes we see on jobsites:
- Skipping the astragal entirely on French or double doors, relying on the latch alone to hold the seam - which does nothing for weather sealing or double door security.
- Mounting on the wrong leaf, since an overlapping astragal has to go on the correct side (typically the pull side of the active leaf) or it will interfere with proper closing.
- Using an undersized or mismatched astragal that doesn't fully span the door height, leaving air gaps at the top or bottom of the seam.
- Ignoring material choice, since a thin, low-grade strip flexes and warps, opening the same gap it was meant to close.
The cost of ignoring this adds up in more than one way. An unsealed meeting stile causes air infiltration every day, driving up utility bills. It lets in wind-driven rain along the center seam. And structurally, it's the softest point in a double-door opening - exactly where forced-entry attempts apply pressure.
This is a double door security and weatherproofing problem before it's ever a cosmetic one.
The Engineering Behind a T-Astragal Seal
A T-astragal is named for its cross-section: a vertical leg that mounts to the door edge, and a horizontal leg that overlaps the neighboring leaf - forming a T shape when viewed from above.
Overlap mechanics. The T-profile is mounted to the edge of one leaf and extends over the edge of the other when the doors close. That overlap is what physically closes the gap - not just narrowing it, but covering it completely, so wind, water, and light have no straight path through.
Active vs. inactive leaf sequencing. Because the astragal overlaps one leaf onto the other, the door carrying the astragal has to close in the correct sequence relative to its partner. Get the mounting side wrong, and the two doors bind against each other instead of sealing.
Security reinforcement. Beyond sealing, the overlapping profile also resists prying. A door pair without an astragal has a soft seam that can be forced apart at the latch. A properly installed T-astragal backs that seam with a continuous strip of rigid material running the full height of the door, meaningfully raising the force needed to separate the two leaves - a key layer in overall physical security for double-door entries.
Get these three mechanics right, and you get a double-door system that seals like a single door and resists forced entry at the one point most pairs leave exposed.

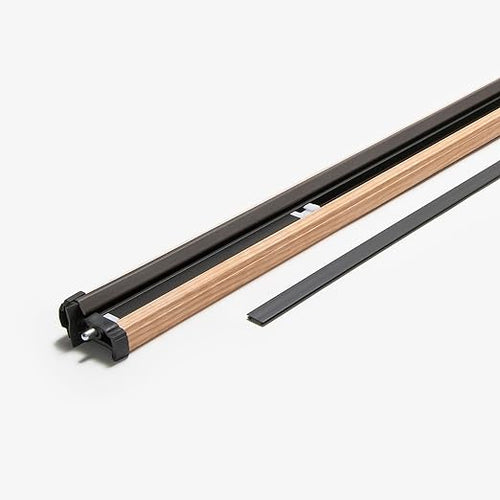

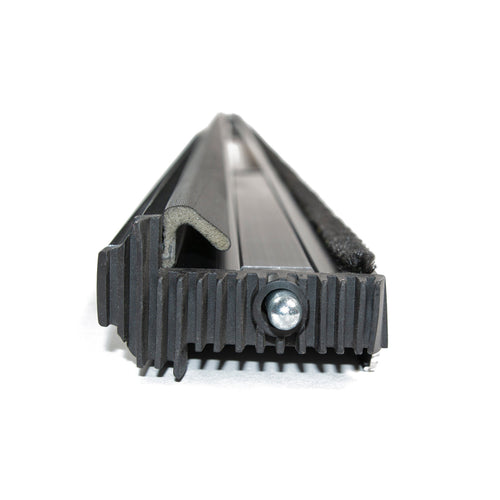

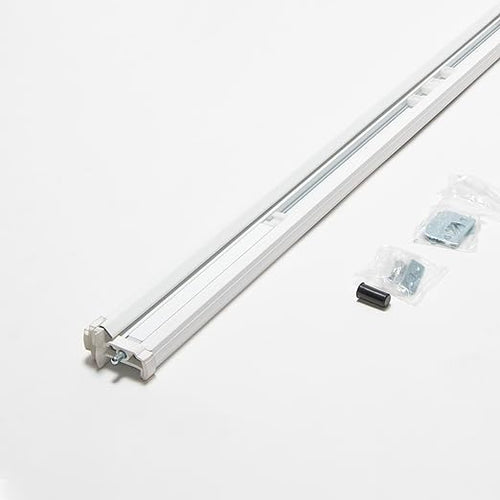

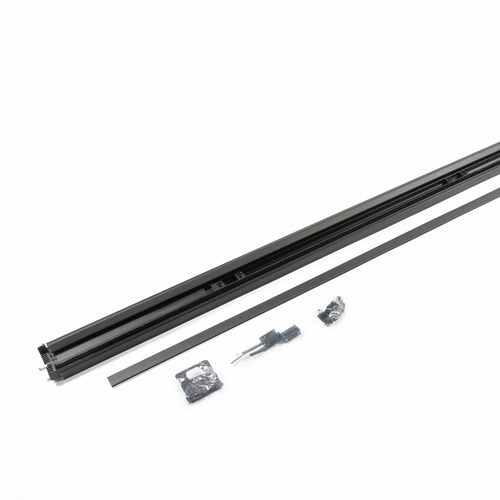

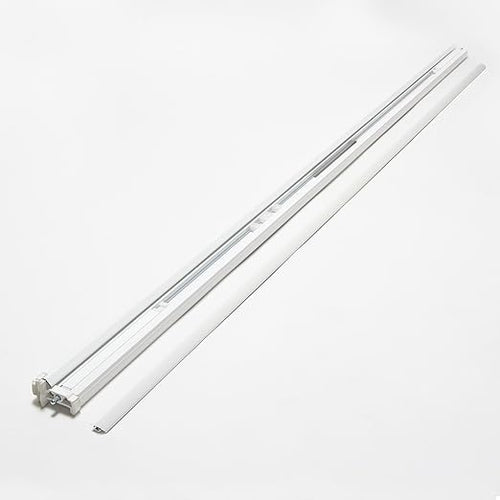

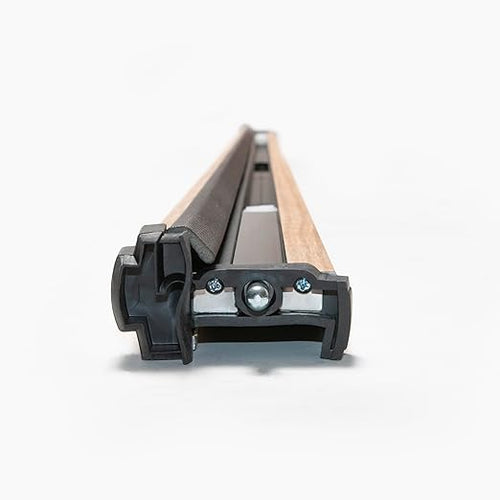

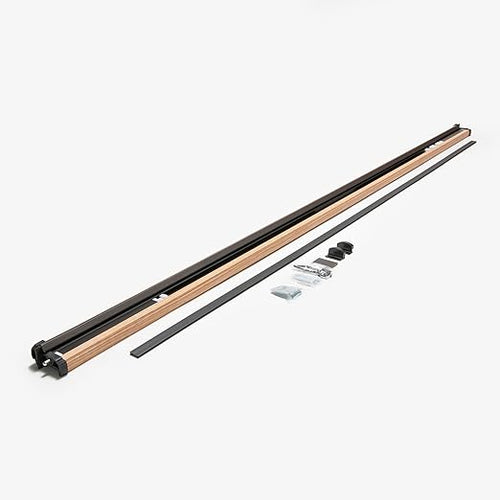

The Solution: Aluminum T-Astragal for Double Doors / French Doors
This is exactly the gap Inbar Hardware built its Aluminum T-Astragal for Double Doors/French Doors to close.
Instead of a thin, generic astragal strip, this heavy-duty door astragal is engineered specifically for full-height, full-performance sealing:
- Heavy-duty aluminum T-profile, rust-resistant and built to hold its shape without warping over time.
- Surface-mount T-bolt design, built for both inswing and outswing double-door configurations.
- Full-height coverage, sized to the door for a continuous weatherstrip seal with no gaps at top or bottom.

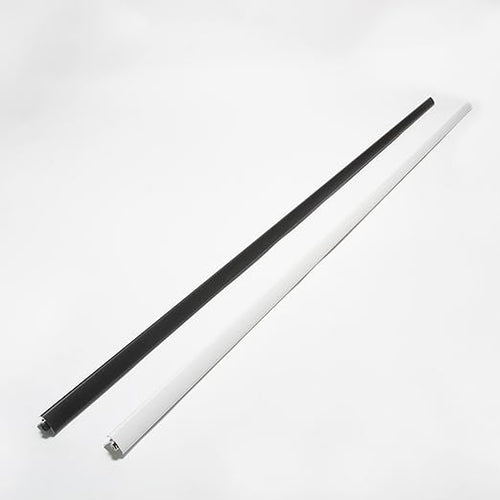

- Multiple finishes available - including White, Oak, Walnut, Mahogany, Clear Anodized, and Black - to match the door's existing hardware and trim.

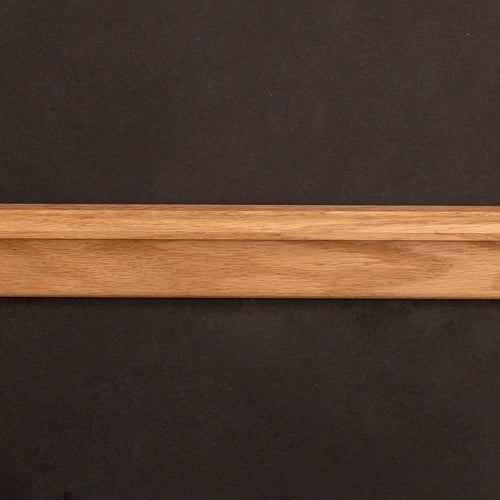

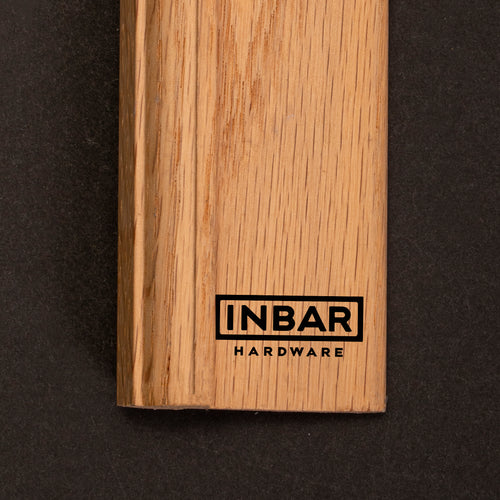

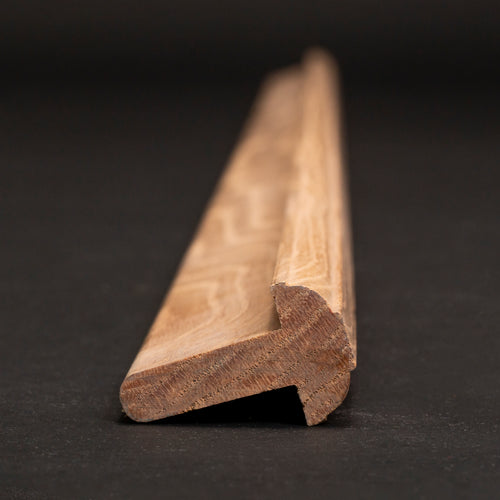

- Solid Oak astragal option available for interior and traditional exterior double doors where a natural wood finish is preferred over aluminum.
For contractors, that means one correctly specified part handles weatherproofing and security at the meeting stile. For homeowners, it means French or double doors that finally close like a single, solid unit.
Selection & Installation Guide
Before you order, confirm these details:
- Measure door height and choose an astragal length that matches - Inbar's aluminum T-astragals are available in 80" and 96" sizes to fit standard and taller double-door openings.
- Identify your active and inactive leaf. The astragal mounts to the inactive leaf, with the "T" facing outward, so the active door can close against it properly.
- Confirm inswing vs. outswing configuration, since mounting orientation changes depending on which way the doors swing.
- Choose a finish - White, Oak, Walnut, Mahogany, Clear Anodized, Black, or unfinished solid oak - to match your door and trim.
- Pre-drill mounting holes using a bit one size smaller than the provided screws to avoid splitting the door edge.
- Test the full door swing through several open-close cycles before final tightening, confirming both leaves close in the correct sequence without binding.
Contractor tip: dry-fit the astragal and close both doors together before drilling final holes. It's the easiest way to confirm you have the mounting side and swing direction right before committing.
Standard Weatherstrip vs. T-Astragal at the Meeting Stile
| Factor | Standard Weatherstrip Only | Inbar Aluminum T-Astragal |
|---|---|---|
| Weather sealing | Reduces drafts, doesn't fully close the gap | Full overlap seals the seam completely |
| Security | No added resistance to forced entry | Reinforces the meeting stile against prying |
| Durability | Flexible strips compress and wear quickly | Rigid aluminum holds its shape long-term |
| Appearance | Visible gap line remains between doors | Doors close as a clean, unified pair |
| Best for | Single-door frame sealing only | Double doors, French doors, paired openings |
The difference isn't just about drafts. It's whether the center seam of your double doors is structurally reinforced or just loosely covered.
FAQ
Do I really need an astragal if my double doors already latch properly?
Yes - a latch secures the door to the frame, but it doesn't seal or reinforce the gap between the two leaves. An astragal is a separate, necessary piece of door hardware for that seam.
Which door does the astragal mount to - the one I use most, or the other one?
It mounts to the inactive leaf (the one that stays closed most of the time), so the active leaf you use daily can close against it.
Will this fit both French doors and standard double entry doors?
Yes, Inbar's aluminum T-astragal is designed for both inswing and outswing double-door and French door configurations.
Can I install this myself?
Most DIYers with basic tools can install it, though correctly identifying the active/inactive leaf and swing direction is important - take time on that step before drilling.
What finish options are available to match my doors?
White, Oak, Walnut, Mahogany, Clear Anodized, and Black aluminum finishes, plus a solid oak option for a natural wood look.
Does a T-astragal actually improve security, or is it mainly for weatherproofing?
Both - the overlapping profile blocks drafts and water while also reinforcing the meeting stile against prying and forced entry.
Have more questions? Visit our full FAQ page.
Final Thoughts: Don't Leave Your Double Doors' Weak Point Exposed
Every double-door or French door system is only as secure and weathertight as its center seam. Without a proper astragal, that seam is the softest point in the entire opening.
The Aluminum T-Astragal for Double Doors/French Doors from Inbar Hardware gives contractors and homeowners a heavy-duty, code-aware solution built specifically for that gap.
